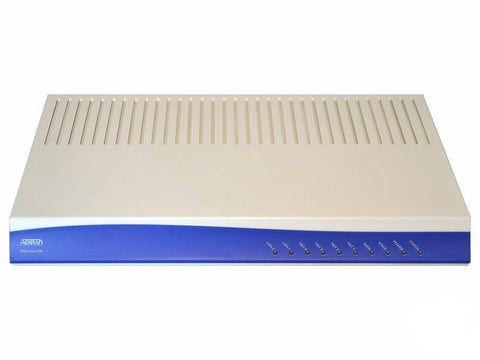

Adtran Total Access 924e 2nd Gen 4242924L1 Gateway

by Adtran


List price $839.99


Save $140.00

Ready to Ship
1 Year Warranty
In Stock

Adtran 4242924L1 Total Access 924e 2nd Gen Description:

The Adtran 4242924L1 Total Access 924e (2nd Gen) is an IP business gateway solution for your business. The Adtran 4242924L1 includes features such as a SIP-gateway, firewall functionality, an IP router, VPN capability, and legacy capability for analog fax, phones, and modems.

True to its Total Access name, the gateway contains several ports and features that provide a multitude of connections. The 924e supports four T1 interfaces instead of the original 1. There are two Fast Ethernet interfaces in an Adtran 924e, 24 analog FXS ports are included for connecting legacy analog equipment. Lastly an FXO port is included to support emergency calling if PRI circuits and SIP trunks both go down. The Adtran Total Access 924e is perfect for companies wanting to slowly transition from analog to SIP, or for companies that want a multitude of connections to their network for redundancy. The 24 FXS ports of the gateway can be used to simulate 24 incoming phone lines into a legacy PBX.

Adtran 4242924L1 Total Access TA 924e Features:

  • Four T1 network interfaces (two of the T1's can be configured for DSX-1 applications)
  • 24 FXS ports
  • 2 10/100 BaseT interfaces
  • 1 FXO interface
  • IP Router
  • Includes G.168 Echo Cancellation and support for G.711 and G.729a CODECs
  • Supports up to 48 simultaneous TDM to VoIP call conversions
  • Supports VoIP applications using SIP

Adtran Total Access 924e Router Features:

  • OSPF
  • BGP
  • RIP V1 and V2
  • Static routes
  • 802.1d Bridging (all protocols)
  • Command Line Interface (CLI)
  • FR
  • MLFR
  • PPP
  • MLPPP WAN Protocols
  • SNMP
  • Telnet
  • Craft/Console port
  • TFTP support
  • Stateful inspection firewall


  • Adtran Total Access 924e 2nd Gen 4242924L1
  • Console Cable
  • Wallmounts
  • Power Cord
