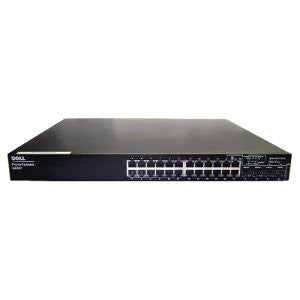

Dell PowerConnect 6224P PoE Switchby Dell
Dell PowerConnect 6224P Description:
The PowerConnect 6224P is a powerful networking switch with advanced routing capabilities. This layer 3 switch is a Gigabit speed switch that provides 10/100/1000 speed to all 24 ports. Four of the ports are combo ports providing either standard Base-T Ethernet or GbE SFP connections.
The Dell 6224P is a Power over Ethernet switch (PoE). This PoE switch is capable of supplying full IEEE 802.3af 15.4W compliant power to end devices such as access points or IP phones. A Dell EPS-470 is required to provide full 15.4W power to all 24 ports at once. The switch has a switch fabric capicity of 136 Gbps, making for ultra fast switch capabilities when stacked. In addition, features such as broadcast storm control, port mirroring, iSCSI autoconfiguration, and auto MDI/MDIX all come standard.
The Dell PowerConnect 6224P provides a modular bay in the rear of the chassis that can accept 10Gb uplink modules. These modules provide the ability to uplink CX4, SFP+ Fiber, or 10Gb Ethernet connections from the Dell 6224P to a 10Gb core network switch. The PowerConnect is capable of being stacking through an optional stacking module in the rear of the chassis. A Dell 6224P Stacking Bundle is available at a reduced price.
Dell PowerConnect 6224P Features:
- Ports: 24 Ports
- Combo Ports: 4 SFP or Ethernet Combo Ports
- Power over Ethernet
- IEEE 802.3af Compliant
- Layer 3 Capabilities
- Support For:
- 10G Base-T
- SFP+ 10GE
- CX4 Stacking Modules (YY741)
- Fully Managed
Each Dell PowerConnect Switch Includes:
- Dell PowerConnect 6224P Switch
- Rackmount Kit with screws
- Power cord
- Console Cable
