Shoretel ShoreGear SG 220T1A Voice Switchby Shoretel
Shoretel Shoregear 220T1A Voice Switch Description:
The ShoreTel SG-220T1A is a voice switch designed to run on ShoreTel's UC platform. The SG-220T1A offers support for up to 220 ShoreTel IP phones or 70 IP Phones, two FXO trunks, four FXS ports and a T1 simultaneously. The ShoreTel SG-220T1A interfaces to standard analog trunks through Loop Start. The SG-220T1A features two RJ-45 Ethernet connections, an RJ-21X port for a patch panel connection. From the RJ-21X port the analog ports can be used. A DB9 port is offered in order to allow users to console into the system. A pair of 3.5 mm audio jacks are included for connecting a paging system or music on hold source.
ShoreTel ShoreGear SG-220T1A Features:
Supports one of the following configurations:
- Option 1:
- 220 IP Phones
- Option 2:
- 2 FXO Trunks
- 4 FXS Ports
- T1 Connection

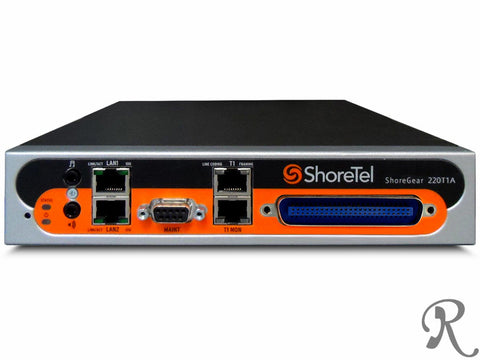

The Following Connections are available on an SG-220T1A
- 2 RJ-45 Ethernet LAN Ports
- 1 T1 WAN Port
- 1 RJ-45 T1 monitor port
- 1 DB-9 Serial Connection Port
- RJ-21X port for connecting a patch panel or harmonica connector
- 3.5mm stereo input for connecting music on hold
- 3.5mm stereo output for connecting a paging system.
- Shoretel ShoreGear SG 220T1A Voice Switch
- Console Cable
- Power Cord
